Applicable industry: Paper V type

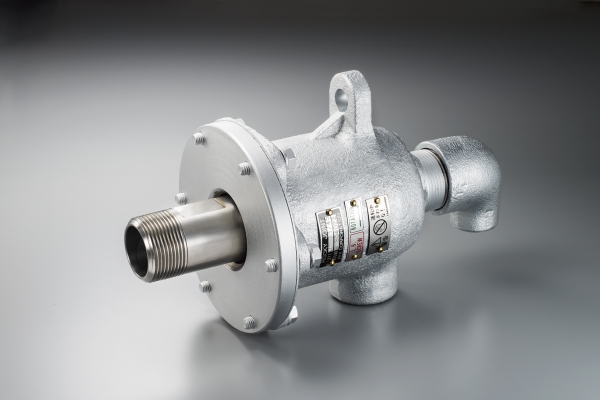

Rotary Joint
Features
-
Applicable for saturated vapor:
Dry bearing that is strong for saturated vapor is adopted.
-
Easy maintenance:

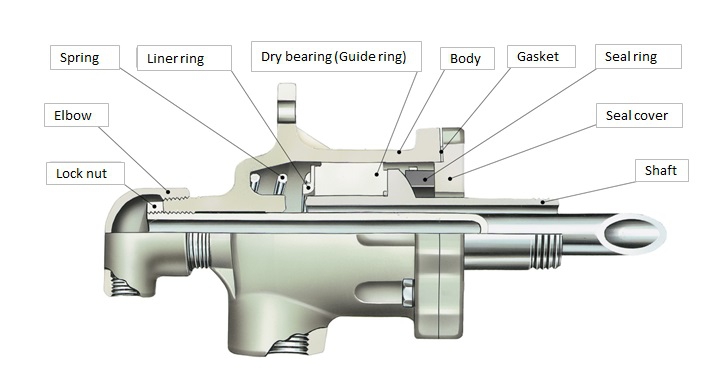

Structure of rotary joint is simple. Easy to exchange parts.
Fluid
Fluid | Water | Saturated vapour | Heat transfer oil |
N/A | ✔ | N/A |
Operating specification
Pressure | Max. speed | Temp. | |
V | Max. 1.0 MPa | 150 min-1 | Max. 180 ℃ |
Max. 145 psi | 150 rpm | Max. 356 °F | |
Max. 10 bar |
Inner pipe type
Inner pipe type | Monoflow | Duoflow (Fixed pipe) | Duoflow (Rotating pipe) |
VT | VP | N/A |
Size & connection part shape
- Standard size 3/4 ~ 2 1/2
*Contact us if the size is over standard type.
- Connection part shape: Screw (RH or LH) or Flange
Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
✔ | N/A | N/A |
Installation dimensions
*Please download catalog to check details of dimensions.
