Applicable industry: Steel NJ type

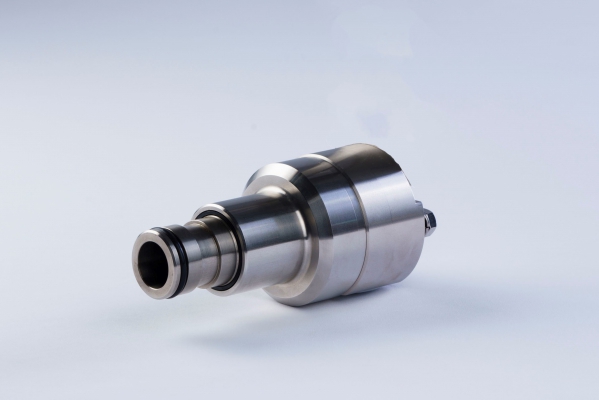

Rotary Joint
Concept
The rotary joint NJ type was developed as a long-life and reliable functional component in response to the longer segment maintenance cycle of continuous casting equipment in the steel industry.

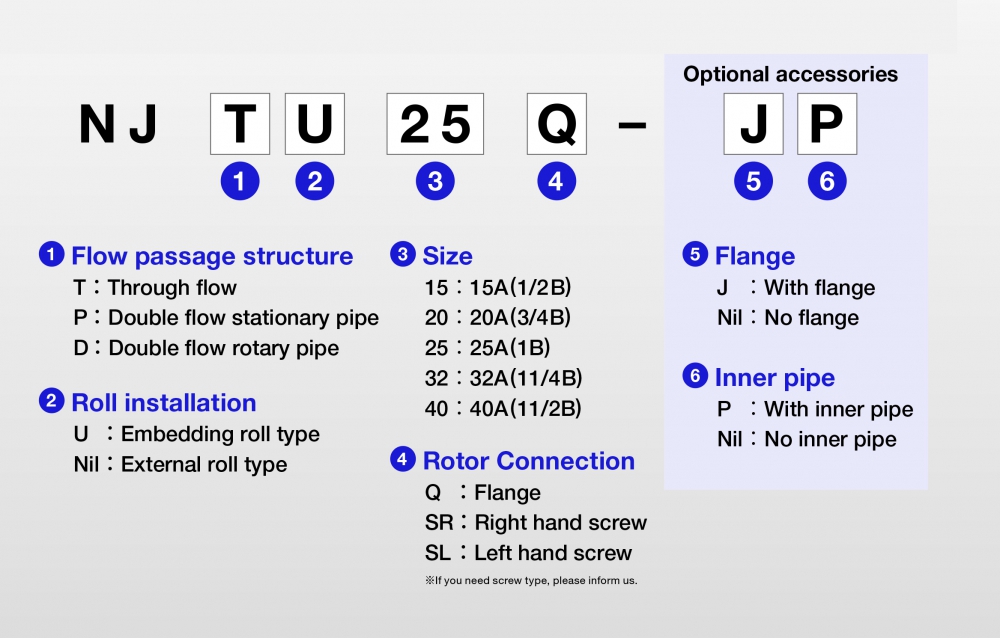

Model
Features
-
-

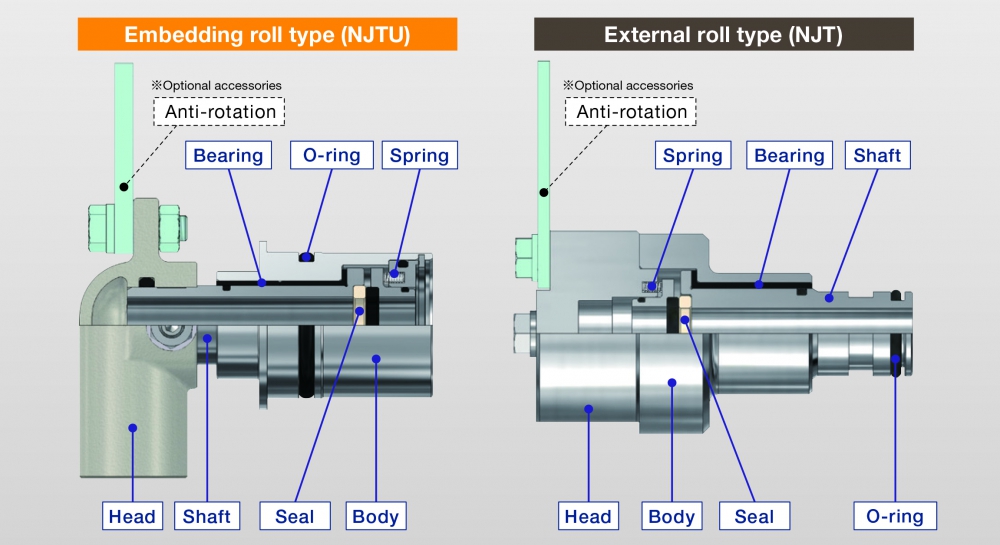

Adoption of metal spring type mechanical seal structure
The metal spring is located at non-wetted area.
So, it can be used stably without affected by bad fluid quality.
-
Reliable bearing support structure
Durable to the tensile load from flexible hose.
-
Long life
Long life due to mechanical seal structure.
-
Low torque
Metal spring system reduce rotating resistance.
Fluid
| Fluid | Water | Saturated vapour | Heat transfer oil |
| ✔ | N/A | N/A |
Operating specification
| Pressure | Max. speed | Temp. | |
| NJ | Max. 1.0 MPa | 10 min-1 | Max. 135 ℃ |
| Max. 145 psi | 10 rpm | Max. 275 ℉ | |
| Max. 10 bar |
Inner pipe type
| Inner pipe type | Monoflow | Duoflow (Fixed pipe) | Duoflow (Rotating pipe) |
| Roll external type | NJT | NJP | NJD |
| Roll embedding type | NJTU | NJPU | NJDU |
Size & connection part shape
- Standard size: 15A ~ 40A
*Contact us if the size is over standard type.
- Connection part shape: Flange or Screw (RH or RL)
*Contact us if you need screw type.
| Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
| ✔ | ✔ | ✔ |
