Applicable industry: Machine tools (Built-in bearing type) LX84M, 86M series

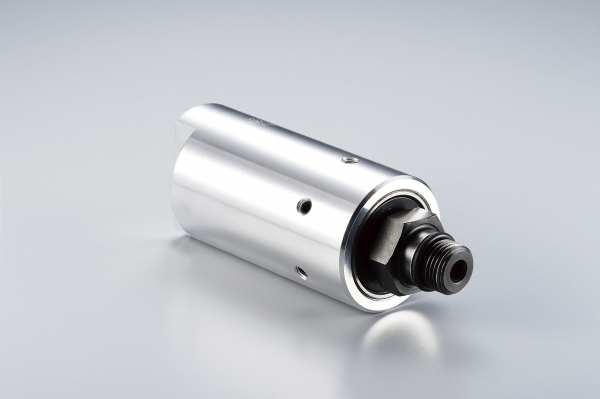

Rotary Joint
Features
- High pressure and high speed type
- Double drain structure (Applicable for vertical mounting)
Fluid
| Fluid | Coolant | Oil mist | Dry air |
| Pressure (MPa) | 0.5 ~ 7 | 0.2 ~ 1 | N/A |
| Pressure (psi) | 72.5 ~ 1,015 | 29 ~ 145 | |
| Pressure (bar) | 5 ~ 70 | 2 ~ 10 |
Operating specification
| Specification | Flow rate (Coolant) | Max. speed | Max. temp |
| Number | Below 20 L/min | Max. 15,000 min-1 | Max. 60 ℃ |
| Below 5.28 gal/min | Max. 15,000 rpm | Max. 140 °F |
Installation direction
| Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
| ✔ | ✔ | ✔ |
Installation specification
| Specification | Rotation without fluid | Min flow rate to operate seal (In case fluid is coolant) |
| ✔ | Over 10 L/min | |
| Over 2.64 gal/min |
Outline drawings and Installation dimensions
*Please download catalog to check details of dimensions.
