Applicable industry: Machine tools (Bearing-less type) ESX20V-L series

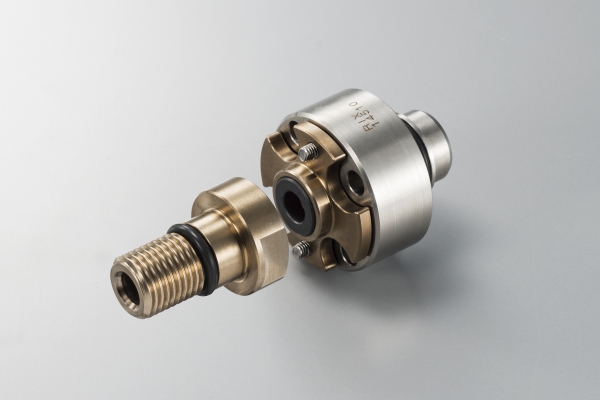

Rotary Joint
Features
-
Long stroke (max. 8 mm)
-
Applicable for dry air
-
Seal type: Heat shrink fit
-
Body: Stainless steel
Fluid
Fluid | Coolant | Oil mist | Dry air |
Pressure (MPa) | 0.5 ~ 14 | 0.2 ~ 1 | 0.2 ~ 1 |
Pressure (psi) | 72.5 ~ 2,030 | 29 ~ 145 | 29 ~ 145 |
Pressure (bar) | 5 ~ 140 | 2 ~ 10 | 2 ~ 10 |
Operating specification
Specification | Flow rate (Coolant) | Max. speed | Max. temp | Stroke (Axial movement) |
Number | Below 20 L/min | Max. 40,000 min-1 | Max. 60 ℃ | Max. 8 mm |
Below 5.28 gal/min | Max. 40,000 rpm | Max. 140 °F |
Installation direction
Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
✔ | ✔ | ✔ |
Installation specification
Specification | Rotation without fluid | Min flow rate to operate seal (In case fluid is coolant) |
*Thrust loading to spindle side |
✔ | Over 10 L/min | 490 N | |
Over 2.64 gal/min |
Note)
*Thrust loading to spindle side
01.Thrust loading is directly proportional to fluid pressure.
02.In case fluid pressure is 7 MPa (1,015 psi, 70 bar).
Outline drawings and Installation dimensions
*Please download catalog to check details of dimensions.
Catalog download
-
ROTALY JOINTS for Machine Tools
Catalog
Rotary Joint
