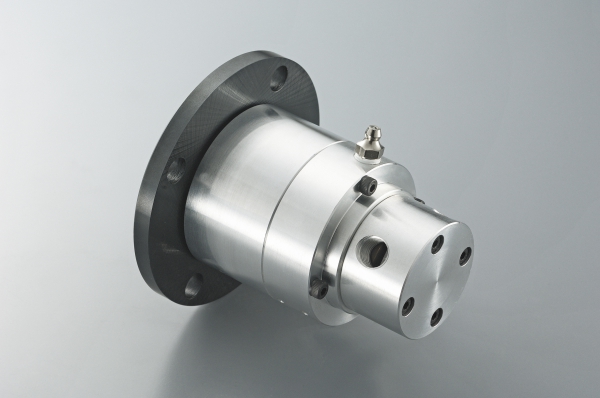

For turning machine for chucking (Built-in bearing type) EES-2P03 (Double ports)
Rotary Joint
Operating specification (First port)
| Fluid | Coolant (oil & water soluble) | Dry air & oil air | Dry air & oil air | Oil (VG2~32) | Oil (VG2~32) |
| Use | Through coolant | Air blow & Actuator | Mating detection | Actuator | Actuator |
| Pressure (MPa) | 7 | *0.6 | 1 | 7 | 3.5 |
| Pressure (psi) | 1,015 | *87 | 145 | 1,015 | 507 |
| Pressure (bar) | 70 | *6 | 10 | 70 | 35 |
| Max. speed (mim-1 & rpm) | 8,000 | 8,000 | 4,000 | 4,000 | 4,500 |
*Mating detection is 0.2MPa (29 psi, 2 bar)
Operating specification (Second port)
| Fluid | Dry air & oil air |
| Use | Air blow, Actuator & Mating detection |
| Pressure (MPa) | 0.2 |
| Pressure (psi) | 29 |
| Pressure (bar) | 2 |
| Max. speed (mim-1 & rpm) | 8,000 |
Installation direction
| Direction | Horizontal | Vertical (Rotating part is upper side) | Vertical (Rotating part is lower side) |
| ✔ | ✔ | *✔ |
*Contact us for more details
Installation specification
| Specification | Rotation without fluid |
| ✔ |
Outline drawings
*Please download catalog to check details of drawings.
Catalog download
-
ROTALY JOINTS for Machine Tools
