Rocky Insulator
Another customer of the business
Thermosetting engineering・plastics・wear-resistant plates・heat-insulated plates
What is Rocky Insulator?
Rocky Insulator has phenolic resin and glass fiber as materials which are uniformly die-molded under heat and pressure. Its excellent heat resistance and toughness have received good reputations from customers.
It is widely used in rubber products and tire manufacturing equipment.
Rocky Insulator -Feature
| Feature１ | Feature 2 | Feature 3 |
|
Low thermal conductivity ・Energy conservation ・Reducing energy costs |
Compressive strength ・Improvement of the durability |
Low water absorption rate ・Improvement of product accuracy ・Long life |

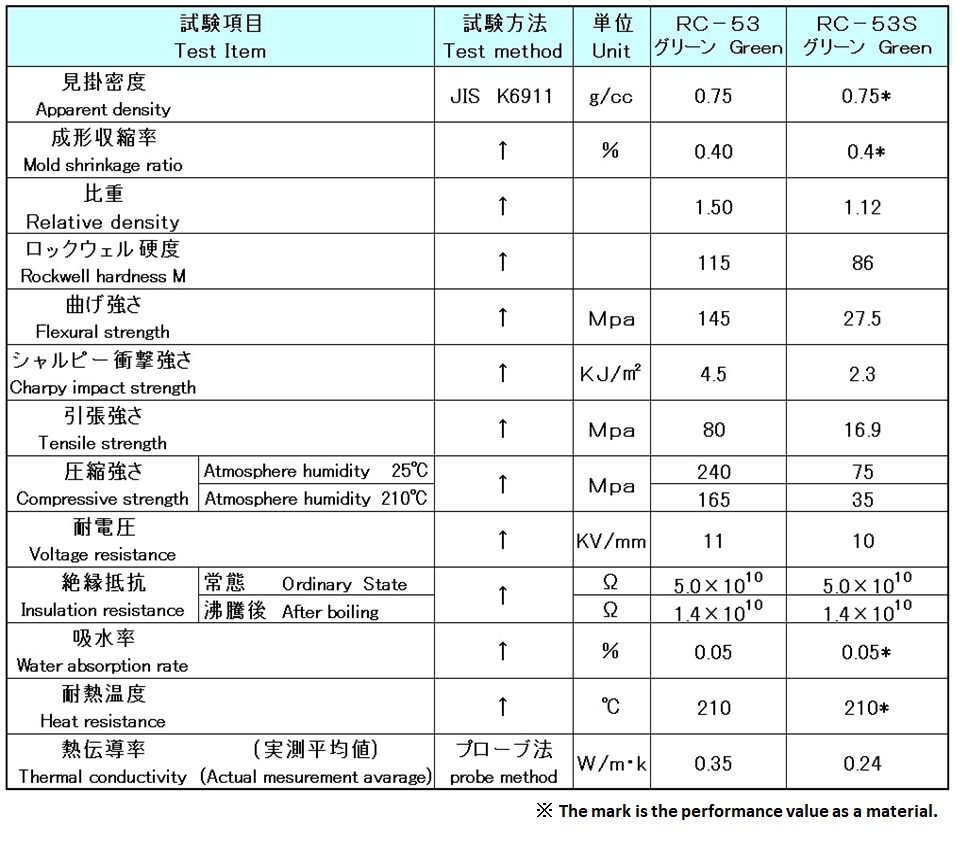

Rocky Insulator - Physical Properties Table

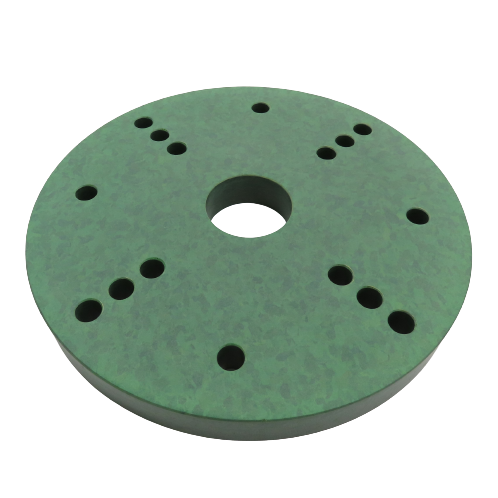

Rocky Insulator - Processing example
-

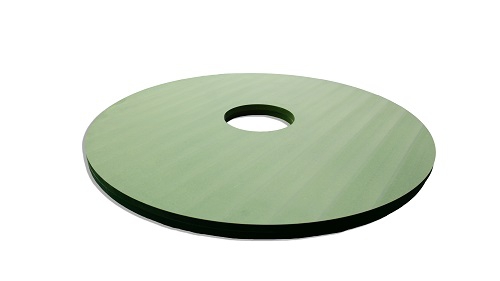

For large diameter platen insulation
-

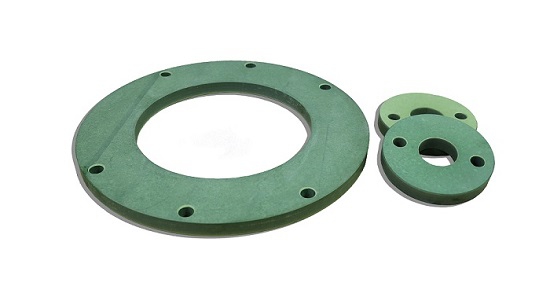

For small diameter platen insulation

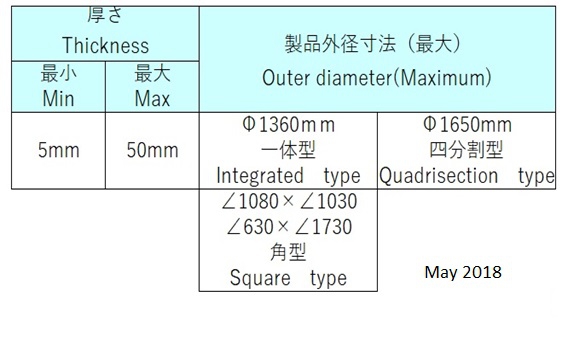

Standard production range
Main uses and results
Since its development in 2006 as an insulation plate for the platen of a vulcanizing machine, which is a tire manufacturing facility, and as an insulation plate for the protection of hydraulic cylinders, it has been widely recognized by Japanese rubber and tire manufacturers. In recent years, it has been delivered to customers in Asian countries and other countries, and has been used continuously by automobile manufacturers.
Customers
This product has been well received by Japanese tire manufacturers and other overseas manufacturers.
Catalog download
-
phenolic resin (Heat resistance・Insulation board) Product Catalog
Catalog
